BS001
Base Systems
Profile Finish
-
Natural Aluminum [N] -
Brushed Stainless [S] -
Black [B] -
Onyx - Black Matte [X] -
Bronze Matte [BZM] -
Graphite [GR] -
Luxe Bronze [LB] -
Copper [CP] -
Modern Brass [MB] -
Gold [GLD] -
Arctic Silver [AS] -
Chalk - White Matte [CK]

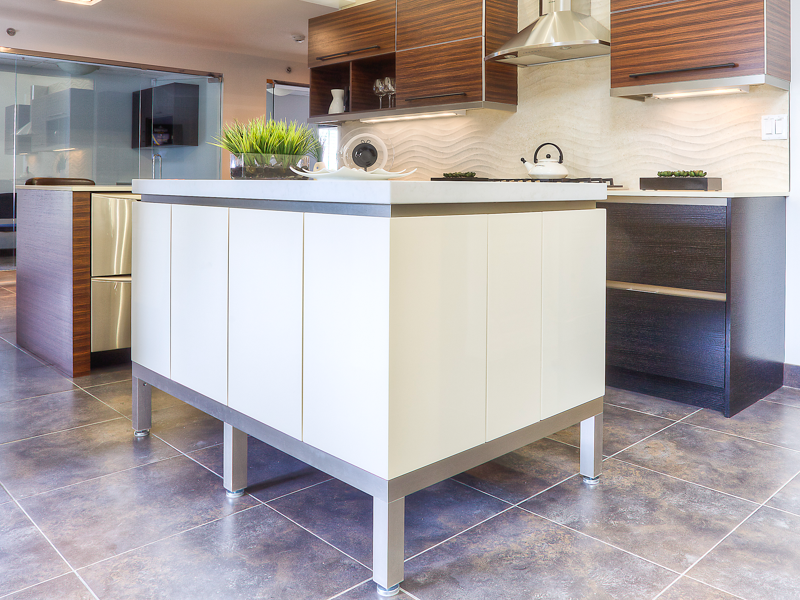

Profile BS001 in stainless steel finish, configuration 2.0. Image courtesy of Kettler.

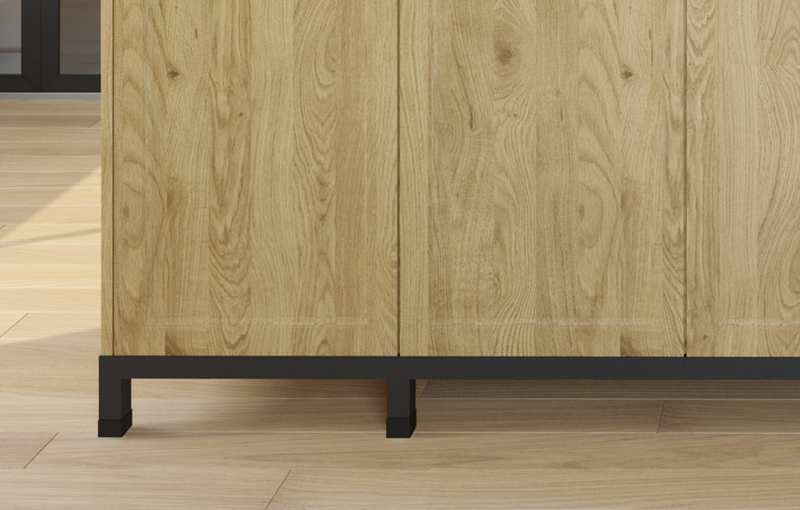

BS001 Aluminum Frame Base Systems with Cuffs - Bronze Matte

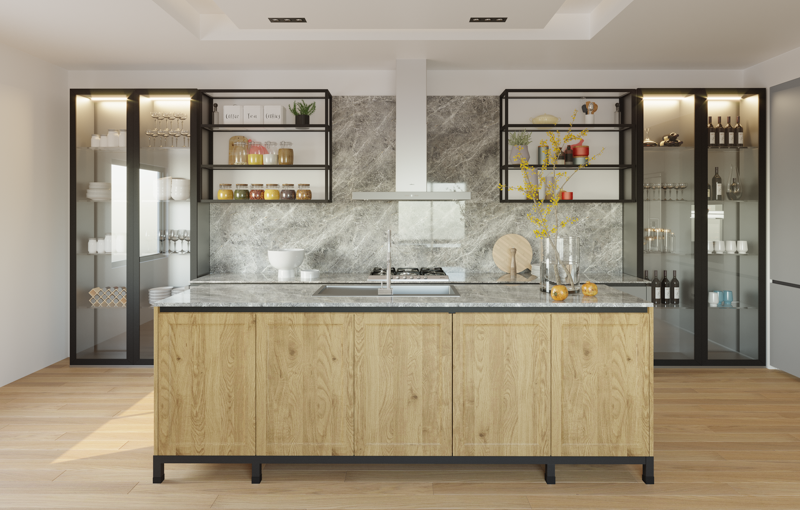

BS001 Aluminum Frame Base Systems with Cuffs - Bronze Matte

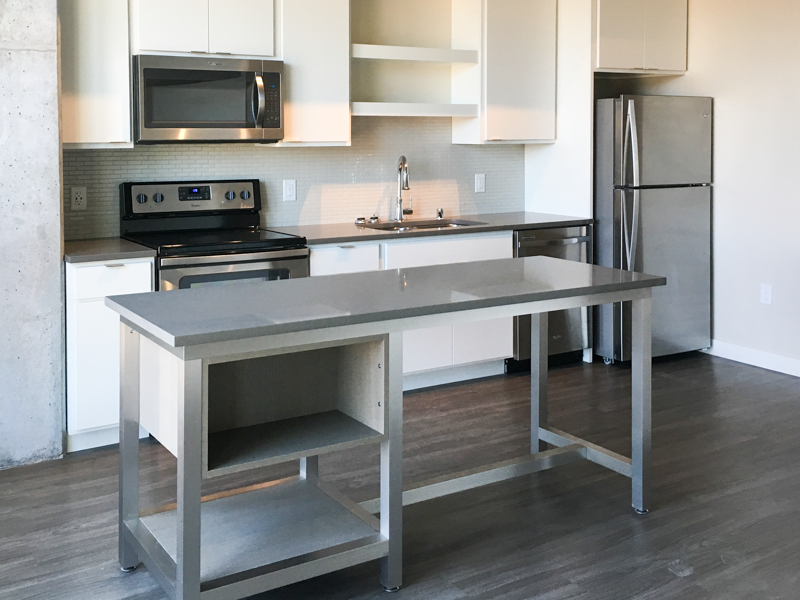

BS001 in a Natural Aluminum Finish. Image courtesy of Elmwood.

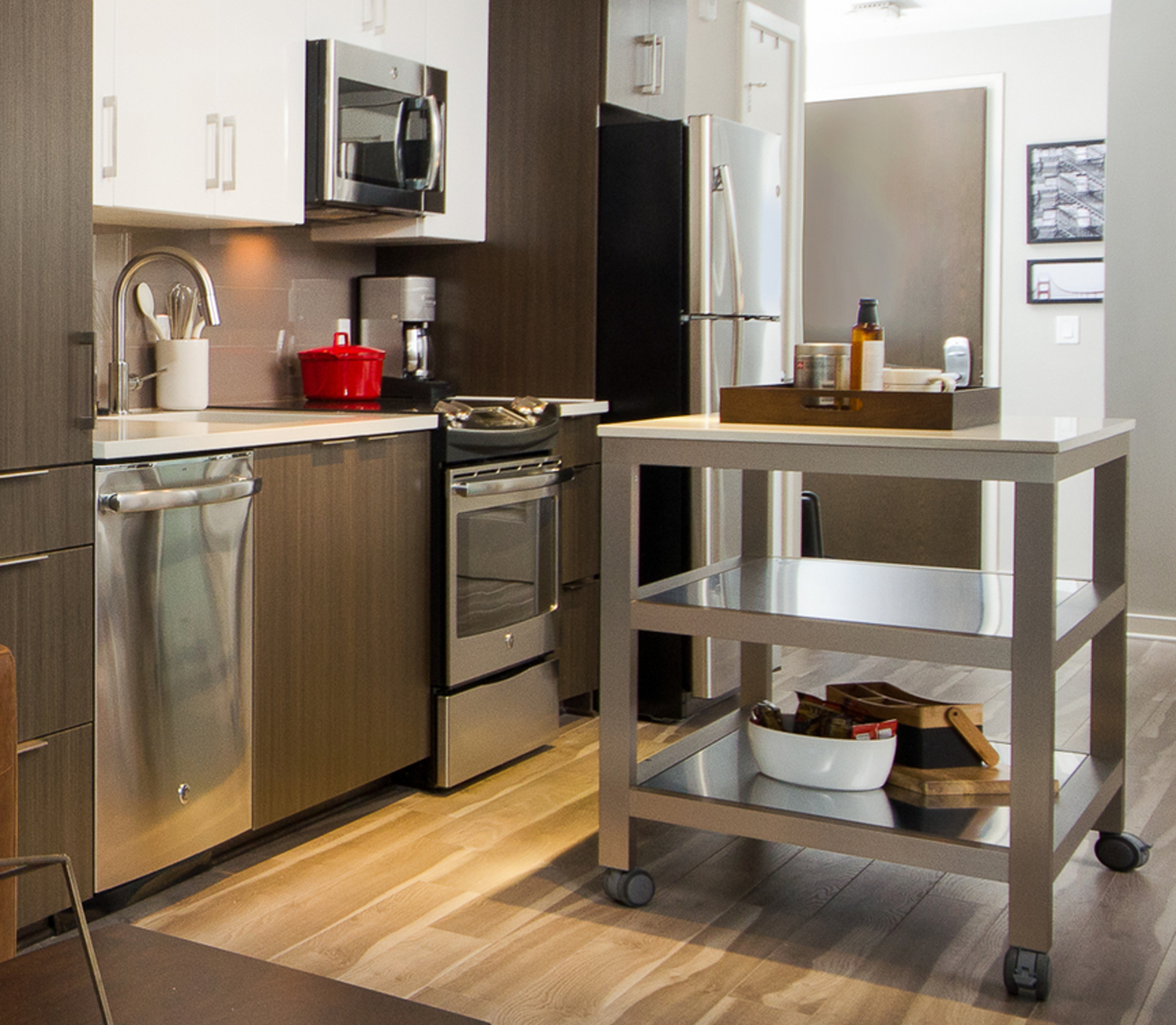

Base System in a Brushed Stainless Finish. Image courtesy of KA Farm.
-
Base 1.0
-
Base 1.1
-
Base 1.2
-
Base 1.3
-
Base 1.4
-
Base 2.0
-
Base 2.1
Configuration Options
Design Guidelines
| System Code | MAX height | MAX depth | MAX width |
|---|---|---|---|
| 1.0 | 16” | 48” | 48” |
| 1.1 | 16” | 48” | 72” |
| 1.2 | 16” | 48” | 96” |
| 1.3 | 16” | 48” | 108” |
| 1.4 | 16” | 48” | 120” |
| 2.0 | 48” | 48” | 48” |
| 2.1 | 48” | 48” | 72” |

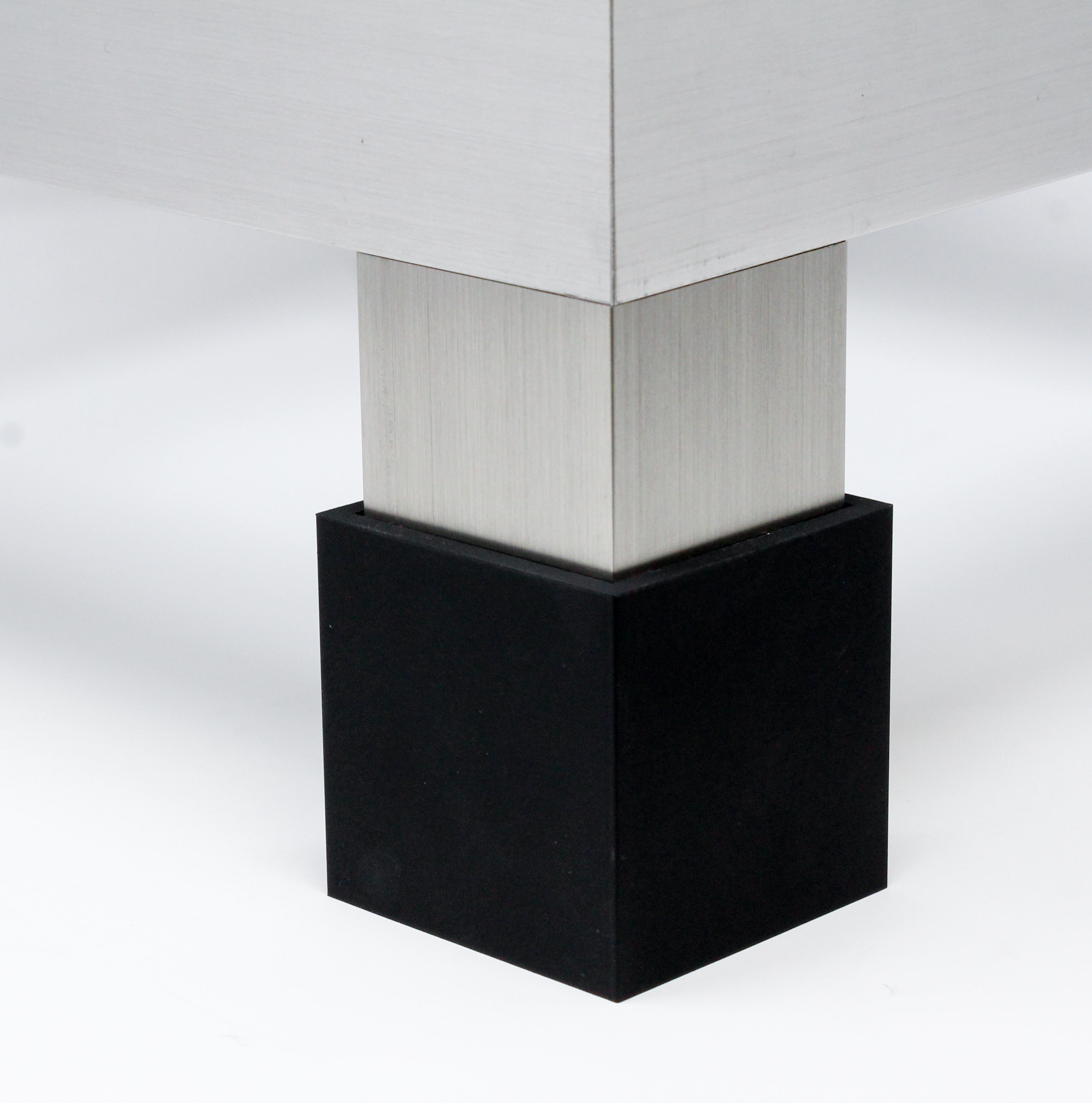

- BS-Cuff-50
- square cuff measures 2.375" x 2.375" (60mm x 60mm)
- available in coated finishes to match or accent your base system structure
- not available in brushed stainless
- not compatible with casters
