AF010
Aluminum Frame Cabinet Doors

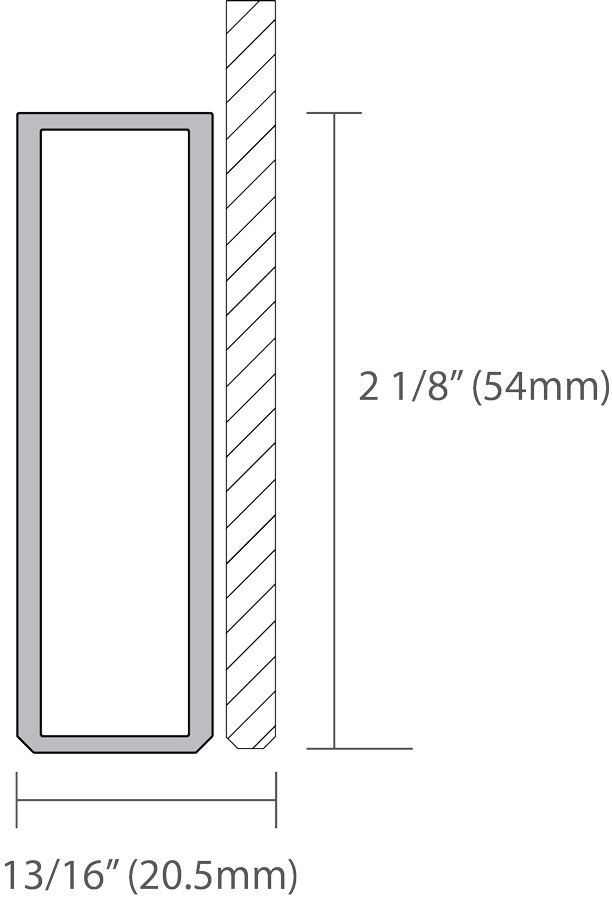

Profile Finish
-
natural aluminum (N) -
brushed stainless (S) -
bronze matte (BZM) -
chalk (CK) -
onyx (black matte) (X) -
modern brass (MB) -
luxe bronze (LB) -
copper (CP) -
arctic silver (AS) -
gold (GLD) -
graphite (GR) -
black (B)
AF010 doors with our white Backpainted Glass inserts. Image courtesy of GS WoodWorking.

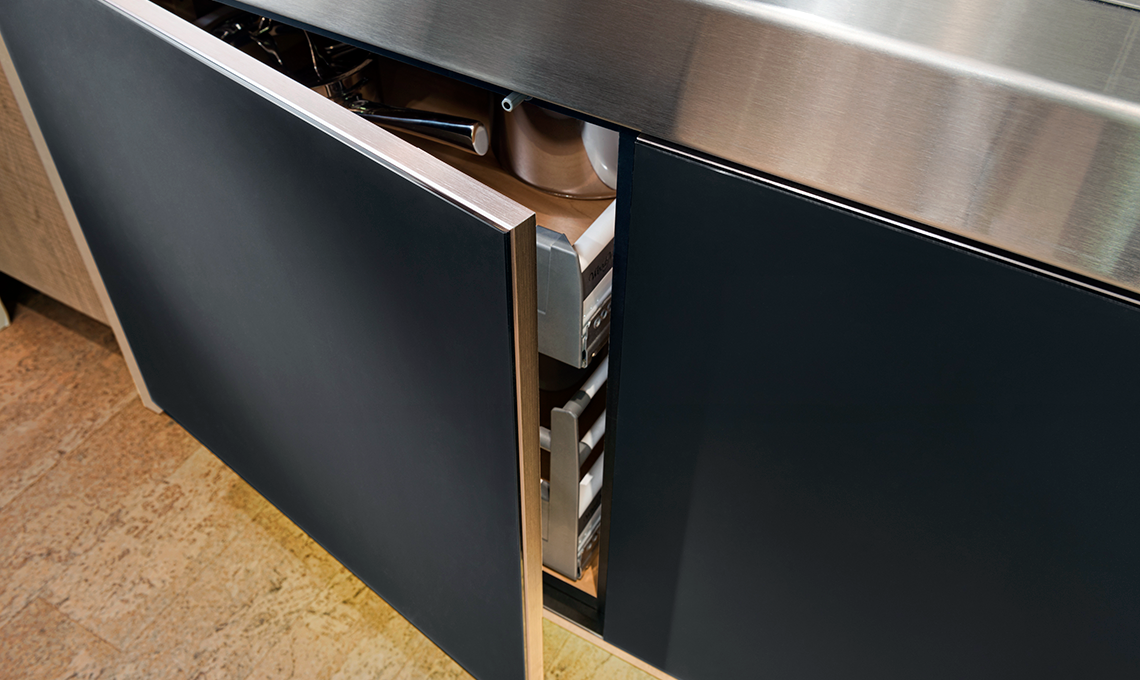

AF010 doors in our brushed stainless steel finish with black matte backpainted glass. Image courtesy of Fine Custom Cabinetry.

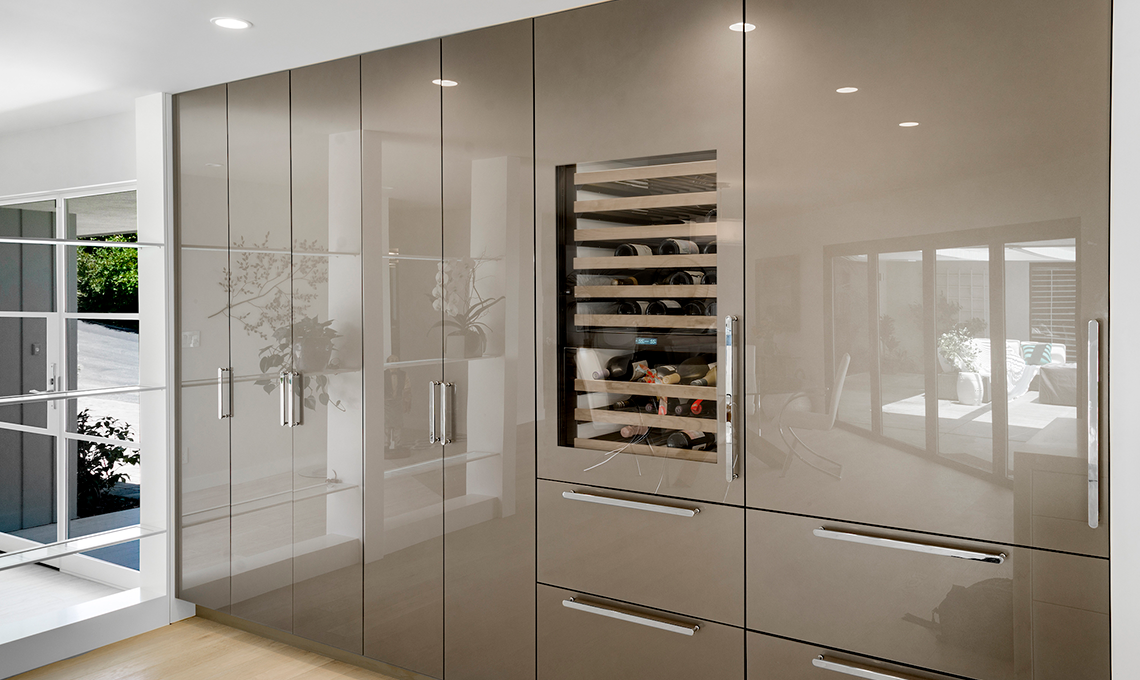

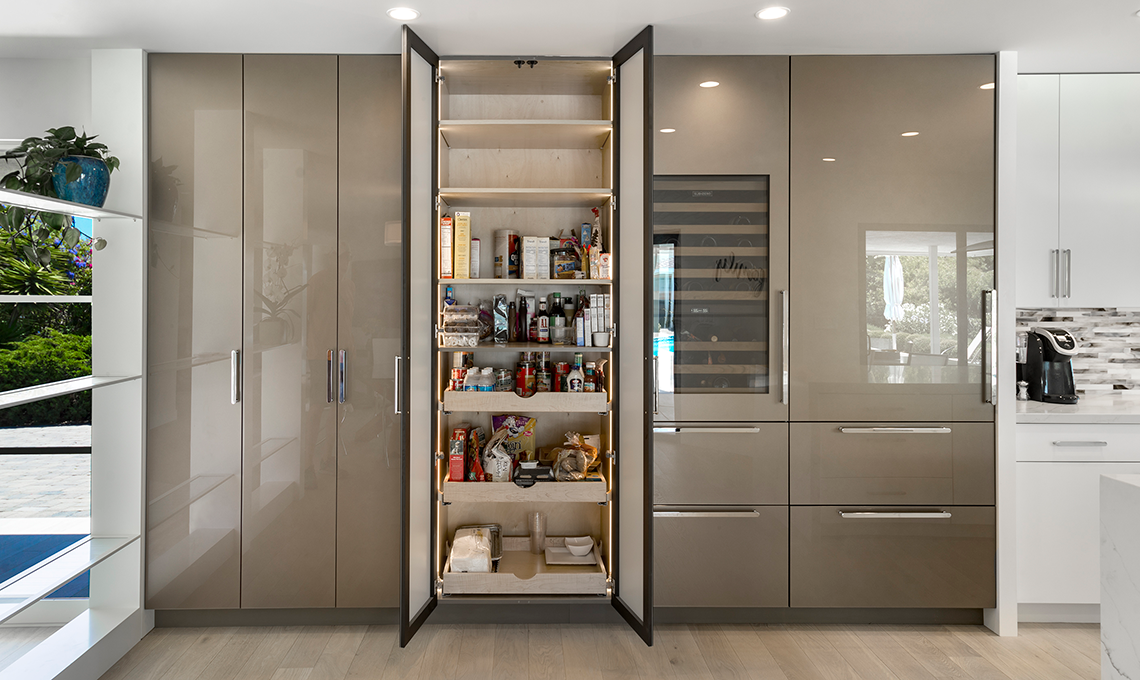

AF010 doors in our brushed stainless steel finish with white matte backpainted glass. Image courtesy of Nucraft
AF010 Aluminum Frame Cabinet Door in our Natural Aluminum Finish and a Sand Matte Glass Insert. Image Courtesy of Geiger

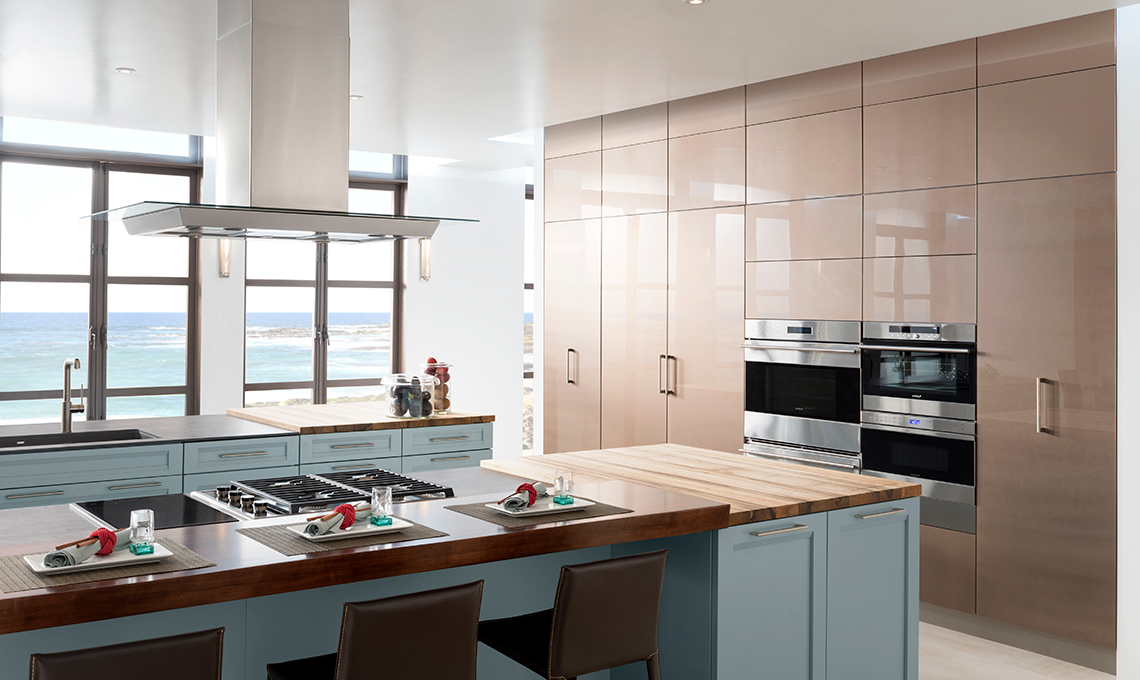

AF010 doors in a Matte Silver finish. Image courtesy of Design Craft

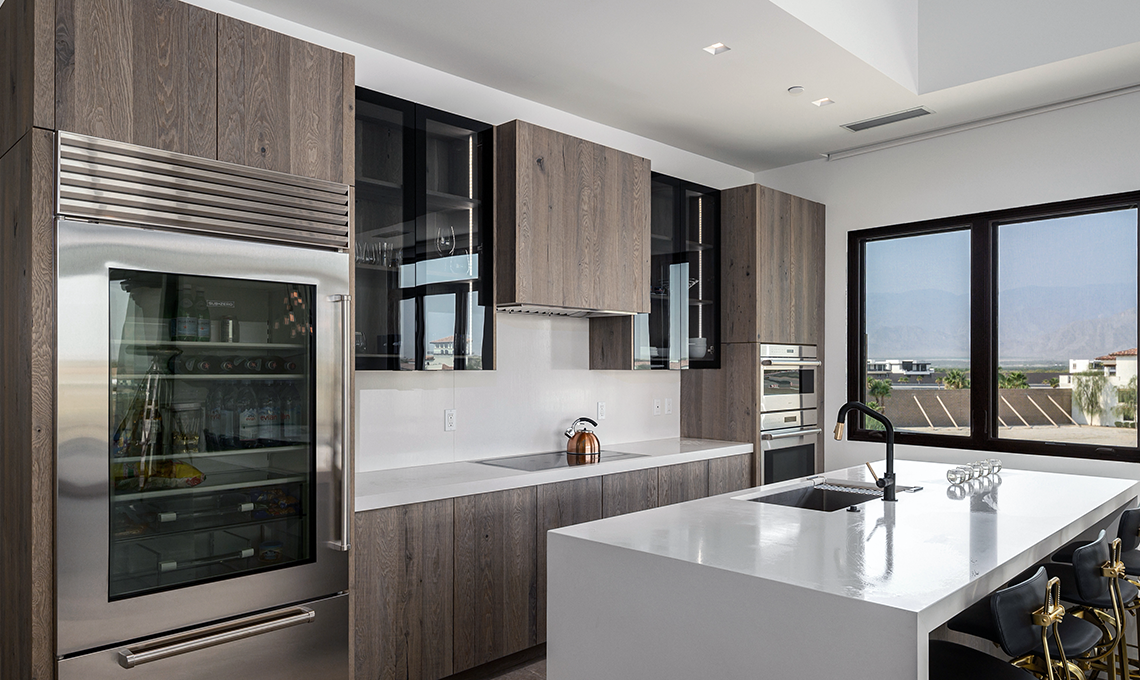

AF010 doors with a Bronze Gloss Backpainted Glass Insert. Image courtesy of Simmons and Co.
Inserts
Hardware Options
- Maximum width & height = 96” (2438.4mm)
- Minimum width & height = 5.5” (140mm)
- Maximum square footage = 24 sf
- P3-42 Finger Pulls must be surface mounted on AF010 frame.
- They can NOT be flush mounted with full glass overlay
- Contact Element Designs for dimensions exceeding recommended maximums
- Visit our Online Sample Store for more AF010 Samples
- 4mm (.156”) with flat edge polish
- Only available with opaque backpainted glass and mirror inserts
- Handle hole locations must be specified at time of order if insert is tempered glass
