AF012
Integrated Hinge Doors featuring Salice AIR Hinges
Profile Finish
-
natural aluminum (N) -
bronze matte (BZM) -
chalk (CK) -
onyx (black matte) (X) -
modern brass (MB) -
luxe bronze (LB) -
copper (CP) -
arctic silver (AS) -
brushed stainless (S) -
gold (GLD) -
graphite (GR) -
black (B)

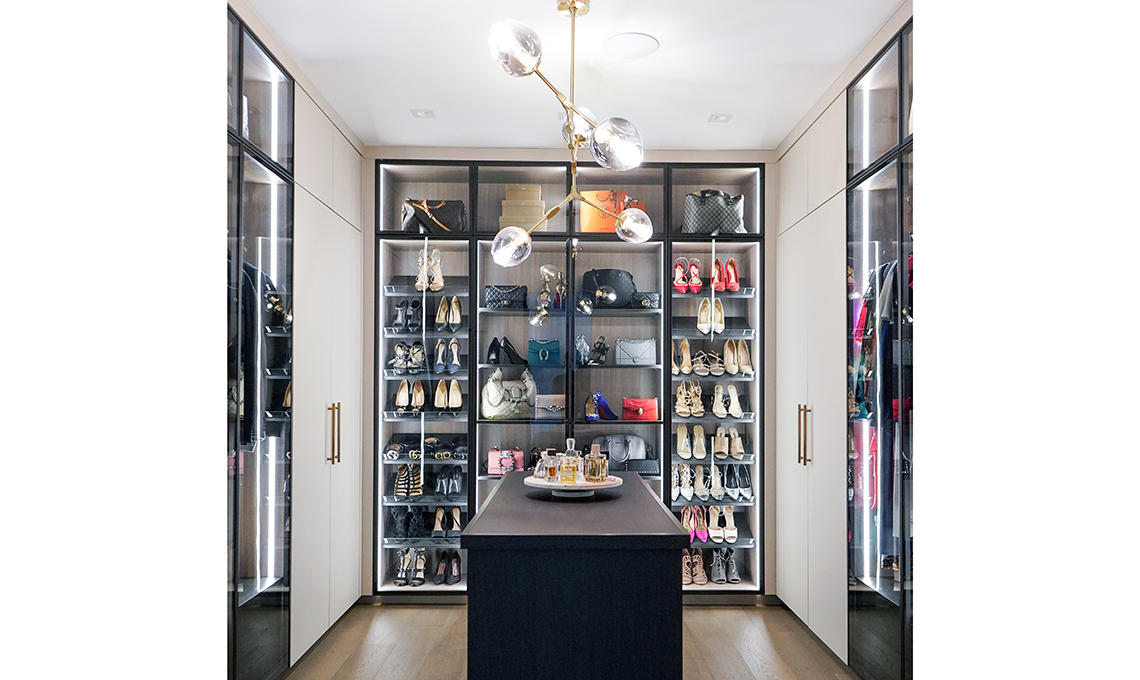

AF012 door in our Onyx finish with Clear Glass Inserts. Image courtesy of Top Notch Cabinets

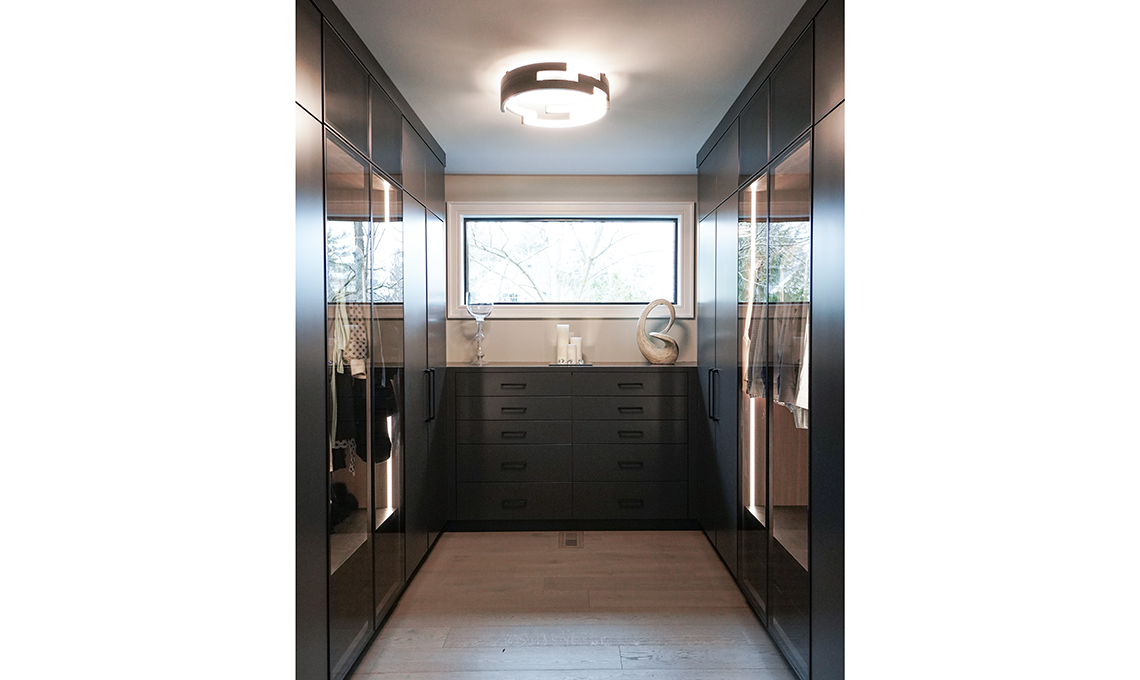

AF012 door in our Bronze Matte finish with Clear Glass Inserts. Image courtesy of Top Notch Cabinets.
AF012 doors in a Graphite Finish with Low Iron Clear Glass Inserts. Image courtesy of Signature Custom Cabinetry.
Inserts
-
Standard Glass & Mirror
-
Premium Glass & Mirror
-
Backpainted Glass
-
3Form Architectural Resin
-
dECOLuxe Solid Acrylic
-
Recycled Leather
Hardware Options
- New door style featuring Salice AIR hinges
- Hinges are completely concealed in upper and lower door corners
- Ideal for transparent glass applications where cabinet interior is visible
- Maximum height = 106.25” (2699mm)
- Maximum width = 24” (610mm)
- Maximum door weight = 55 lbs (25 kg)
- Minimum width =5.5” (139.7mm)
- Minimum height = 5.5” (139.7mm)
- Maximum square footage = 17.7 sf
- NOT recommended for drawer fronts or lift up door applications

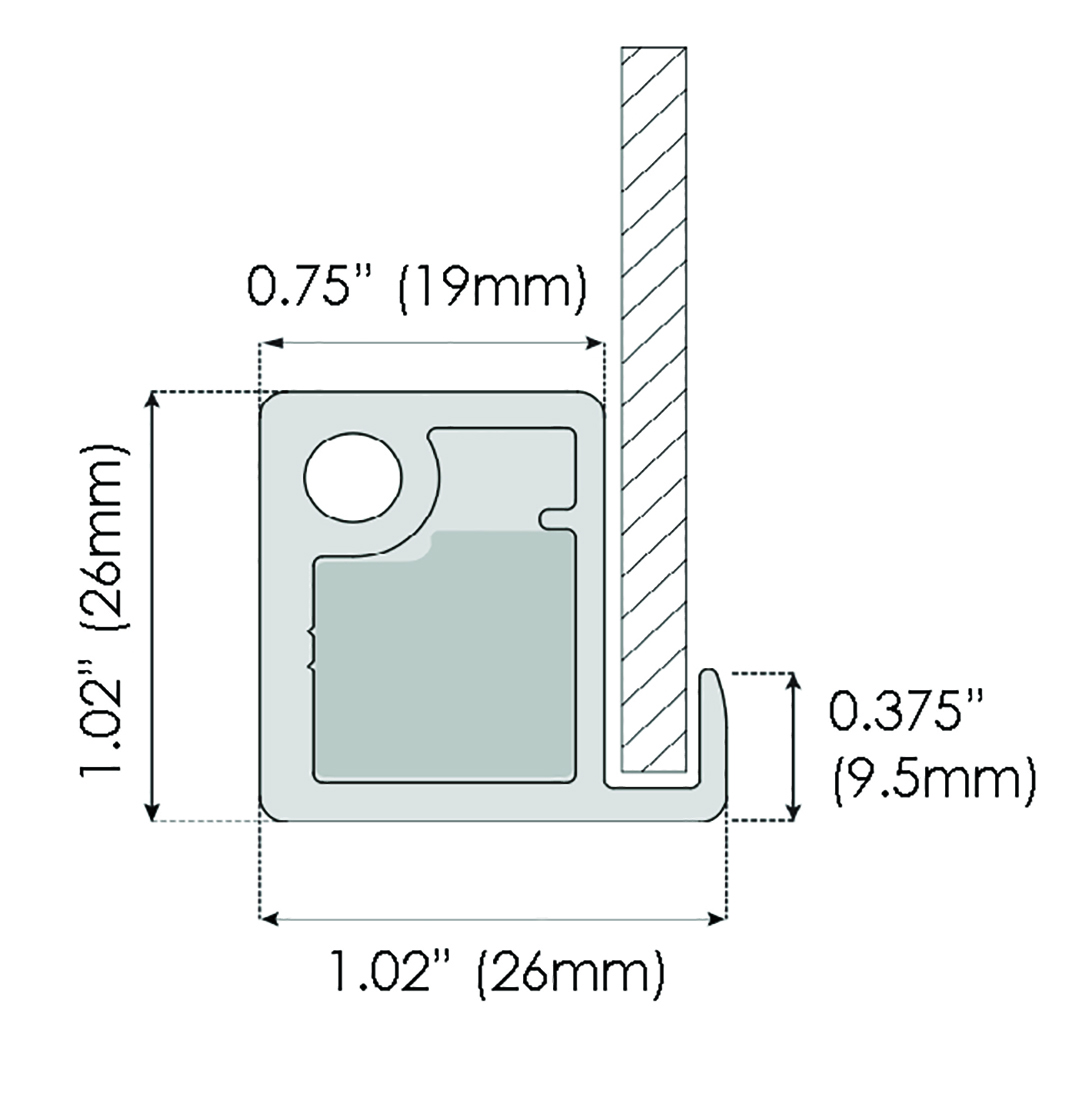

- PLEASE NOTE: Door thickness = 1" (26mm)
- Contact Element Designs for dimensions exceeding recommended maximums
- Visit our Online Sample Store for more AF012 Samples
- 4mm (.156”)
- Handle hole locations must be specified at time of order if insert is tempered glass.
