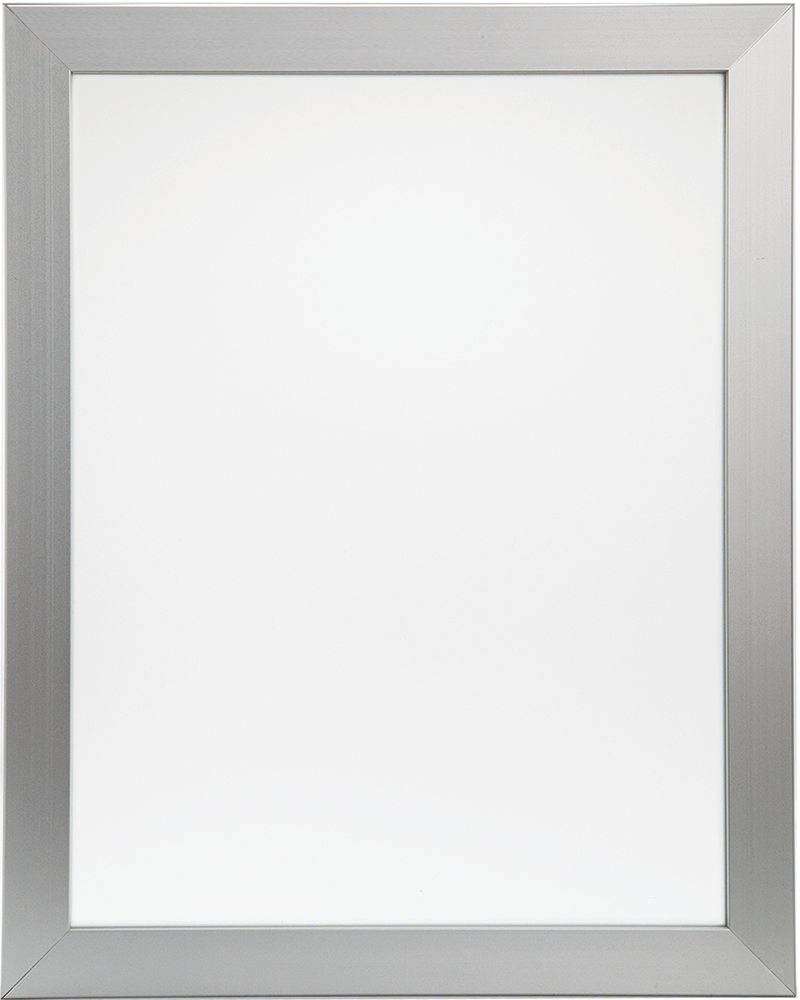

AF013
Aluminum Frame Cabinet Doors
Profile Finish
-
natural aluminum (N) -
bronze matte (BZM) -
chalk (CK) -
onyx (black matte) (X) -
modern brass (MB) -
luxe bronze (LB) -
copper (CP) -
arctic silver (AS) -
brushed stainless (S) -
gold (GLD) -
graphite (GR) -
black (B)

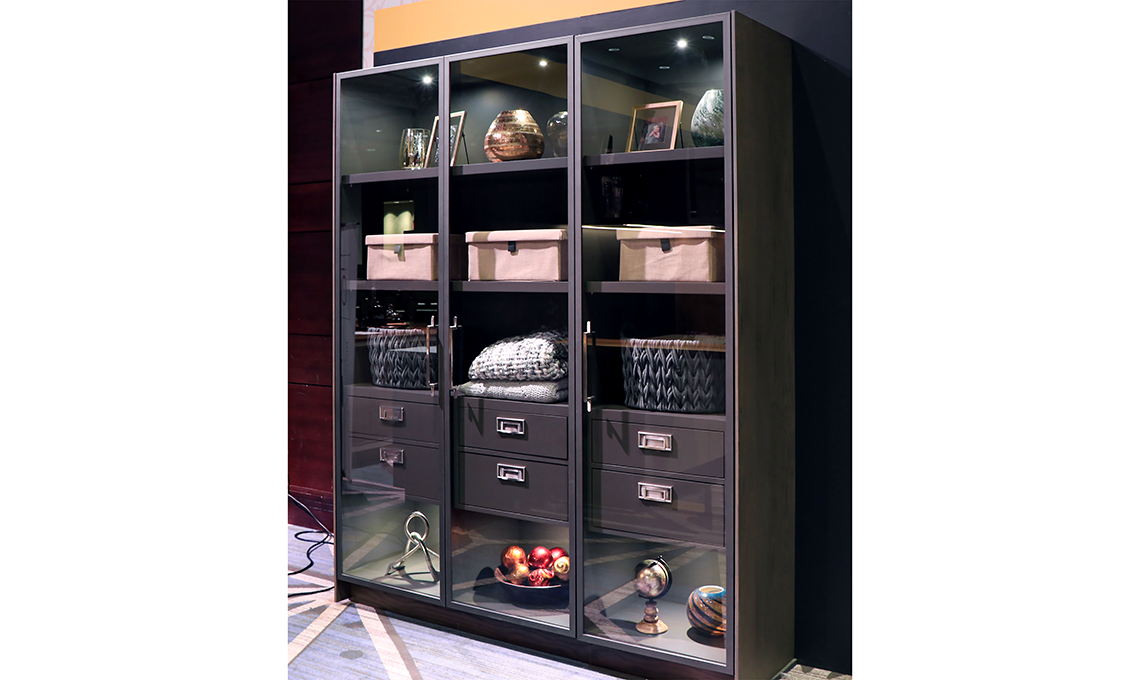

AF013 doors in an Oil Rubbed Bronze Finish with Low Iron Clear Glass Inserts. Image courtesy of Signature Custom Cabinetry
AF013 doors in an Oil Rubbed Bronze Finish with Low Iron Clear Glass Inserts. Image courtesy of Signature Custom Cabinetry

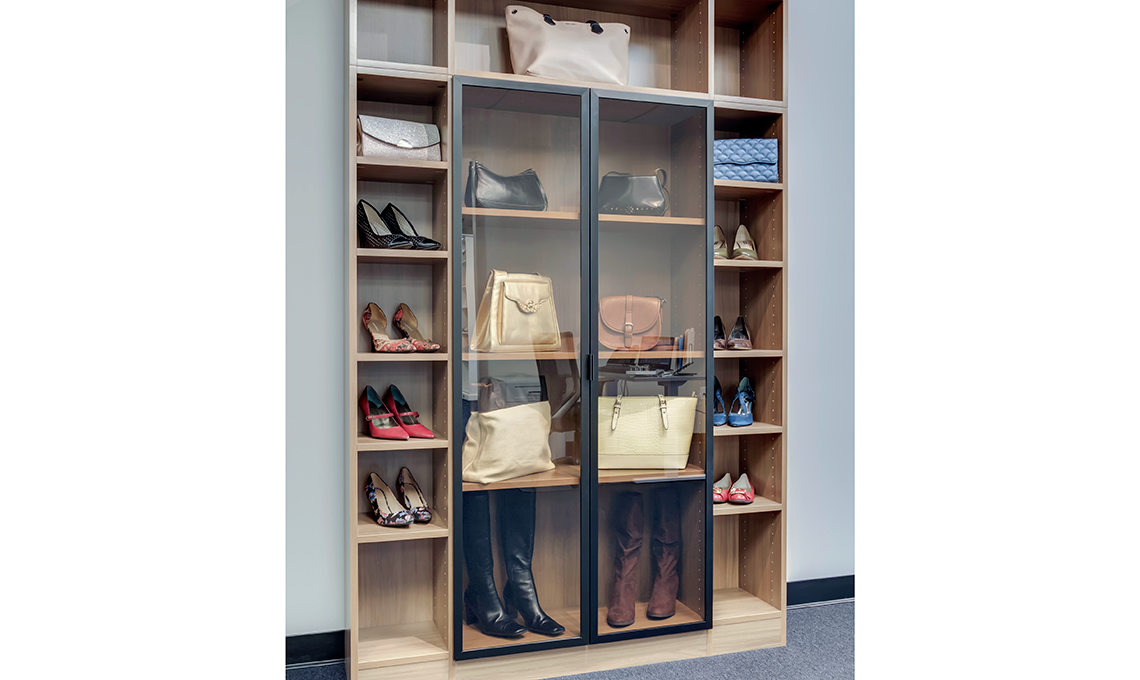

AF012 doors in an Oil Rubbed Bronze Finish. Image courtesy of Top Notch Cabinets.
Inserts
-
Standard Glass & Mirror
-
Premium Glass & Mirror
-
Backpainted Glass
-
3Form Architectural Resin
-
dECOLuxe Solid Acrylic
-
Recycled Leather
Hardware Options

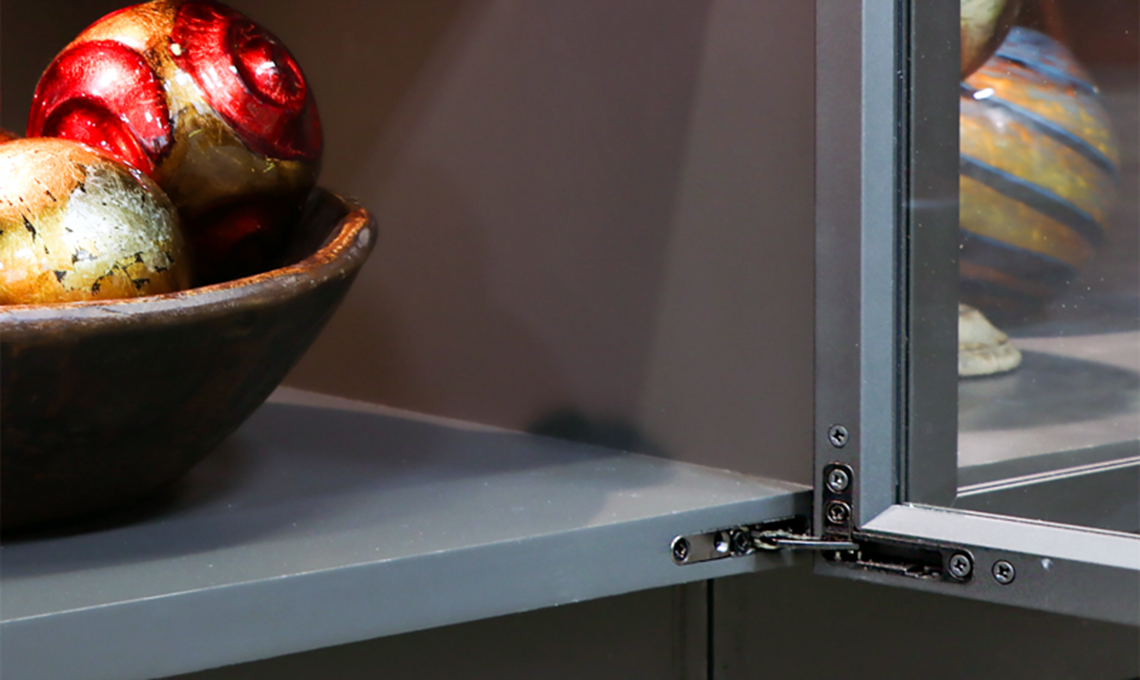

- New door style featuring Salice AIR hinges
- Hinges are completely concealed in upper and lower door corners
- Ideal for transparent glass applications where cabinet interior is visible
- Maximum height = 106.25” (2699mm)
- Maximum width = 24” (610mm)
- Maximum door weight = 55 lbs (25 kg)
- Minimum width =5.5” (139.7mm)
- Minimum height = 5.5” (139.7mm)
- Maximum square footage = 17.7 sf
- NOT recommended for drawer fronts or lift up door applications
- Door thickness = 3/4" (18mm)
- Contact Element Designs for dimensions exceeding recommended maximums
- Visit our Online Sample Store for more AF013 Samples
- 4mm (.156”)
- Handle hole locations must be specified at time of order if insert is tempered glass.
