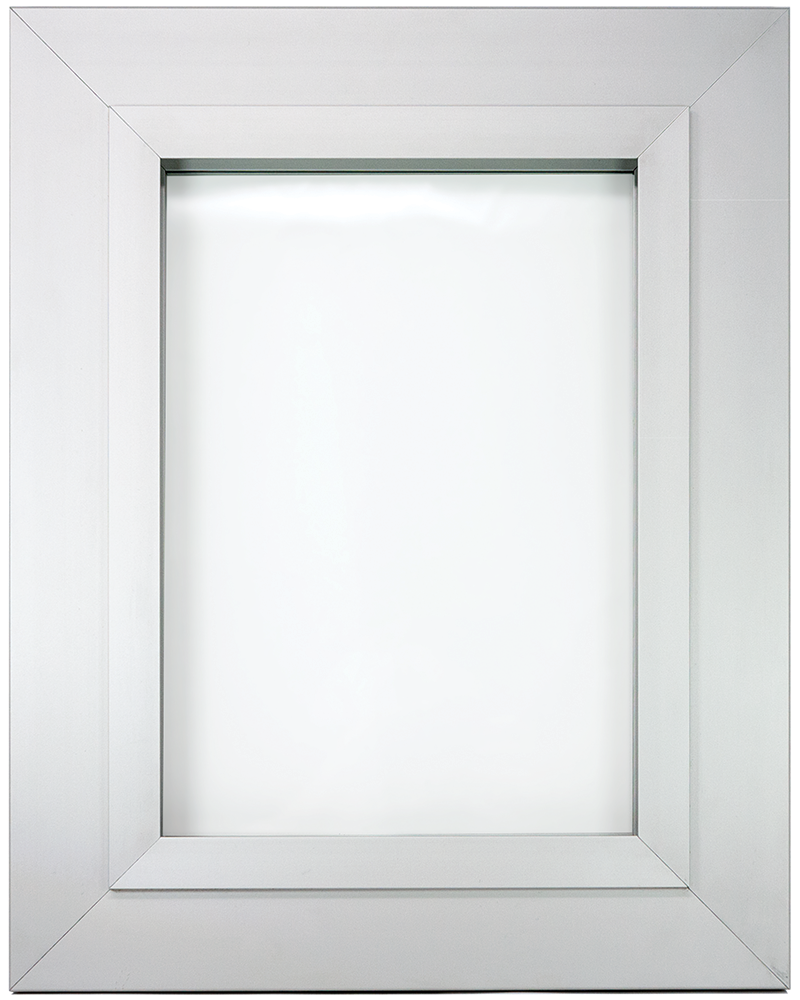

AF015
Aluminum Frame Cabinet Doors
Profile Finish
-
natural aluminum (N) -
bronze matte (BZM) -
chalk (CK) -
onyx (black matte) (X) -
modern brass (MB) -
luxe bronze (LB) -
copper (CP) -
arctic silver (AS) -
gold (GLD) -
graphite (GR) -
black (B)

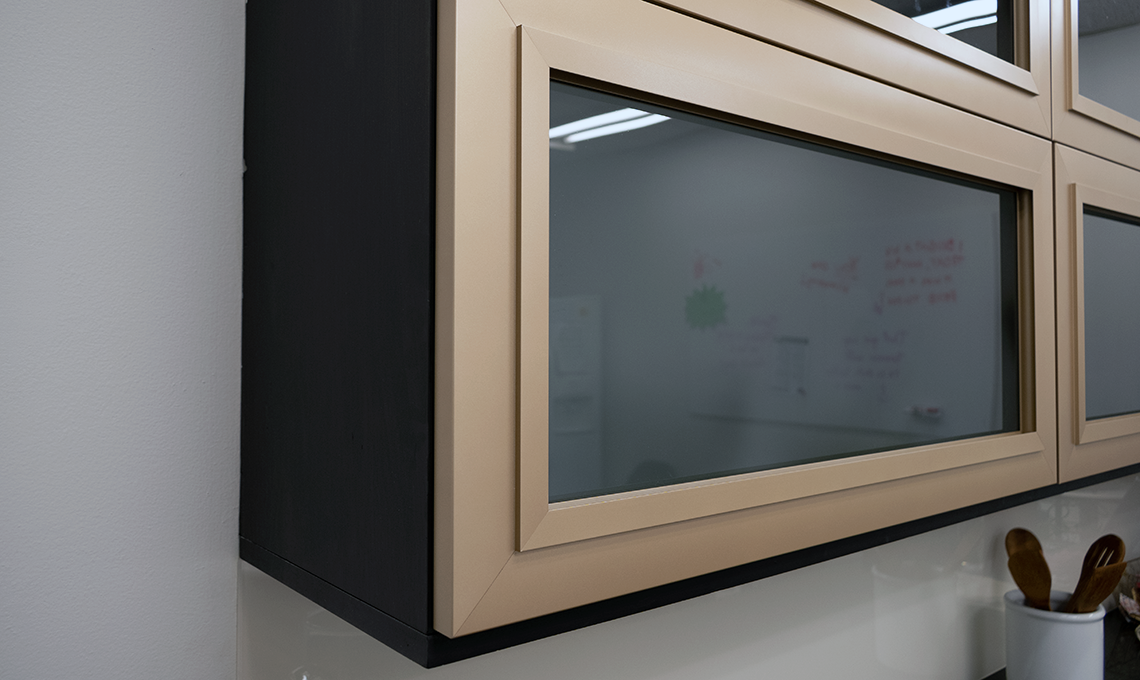

AF015 upper doors in gold finish with grey satin glass. AF015 base cabinet doors in onyx finish with black matte inserts.

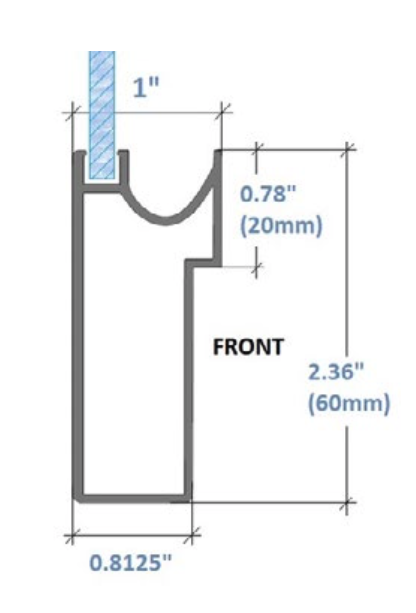

AF015 graphite finish showing integrated pull in frame.

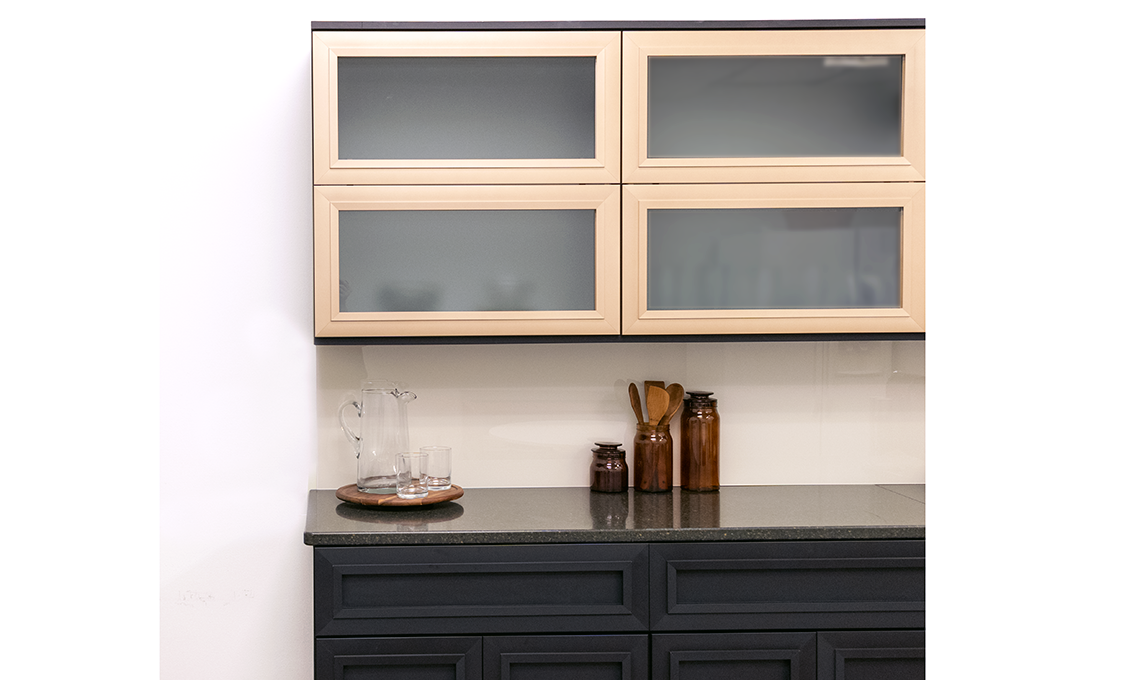

AF015 upper doors in gold finish with grey satin glass.
AF015 graphite door with clear glass insert.
Inserts
-
Standard Glass & Mirror
-
Premium Glass & Mirror
-
Backpainted Glass
-
3Form Architectural Resin
-
dECOLuxe Solid Acrylic
-
Recycled Leather
Hardware Options
- Maximum width & height = 96” (2438.4mm)
- Minimum width & height = 5.5” (140mm)
- Maximum square footage = 24 sf
- Contact Element Designs for dimensions exceeding recommended maximums
- Visit our Online Sample Store for more AF015 Samples
- 4mm (.156”)
- Handle hole can be drilled through the frame
