AF016

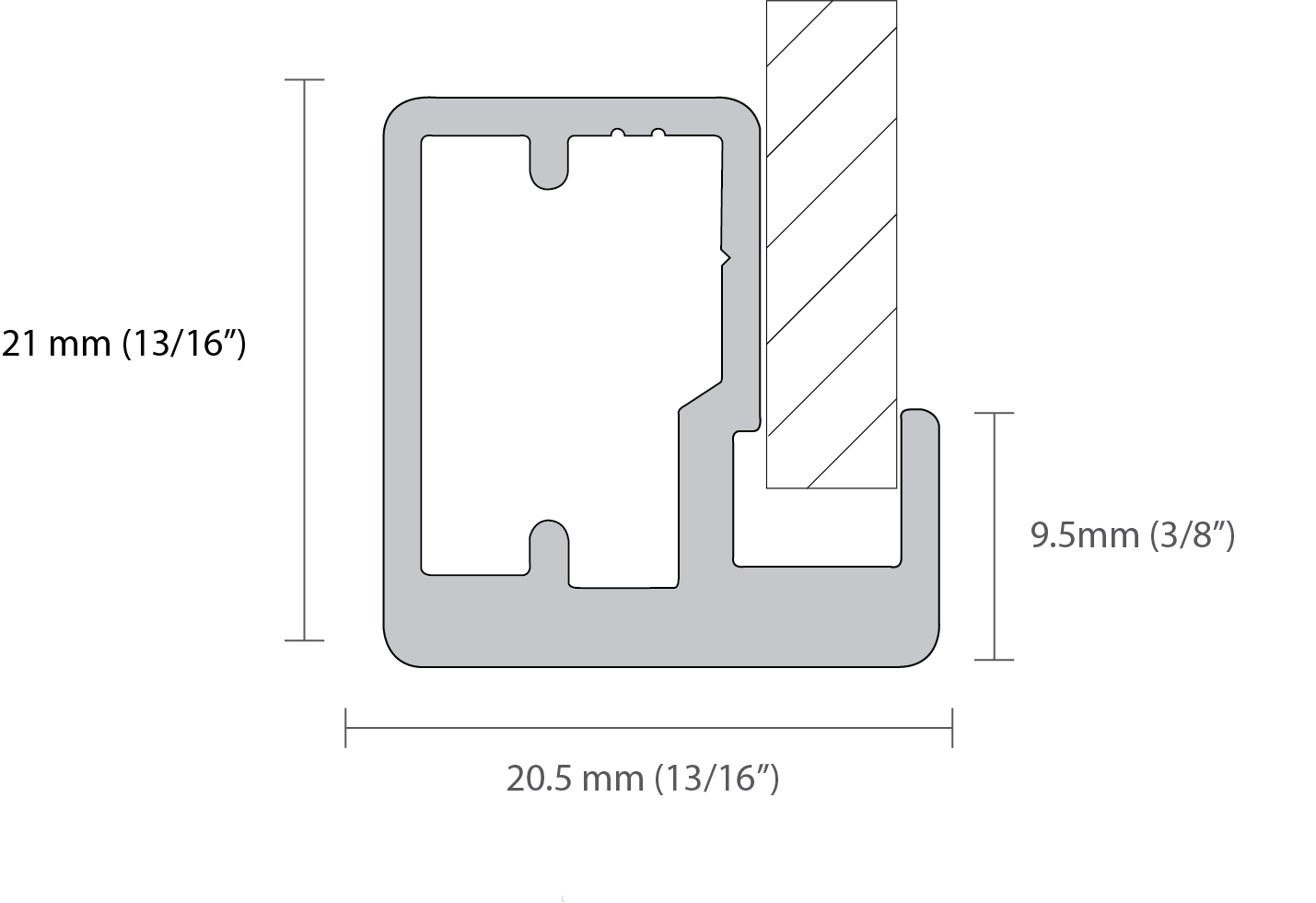

Aluminum Frame Cabinet Doors
Profile Finish
-
onyx (black matte) (X) -
black (B) -
modern brass (MB) -
luxe bronze (LB) -
copper (CP) -
arctic silver (AS) -
gold (GLD) -
graphite (GR) -
natural aluminum (N) -
brushed stainless (S) -
bronze matte (BZM) -
chalk (CK)

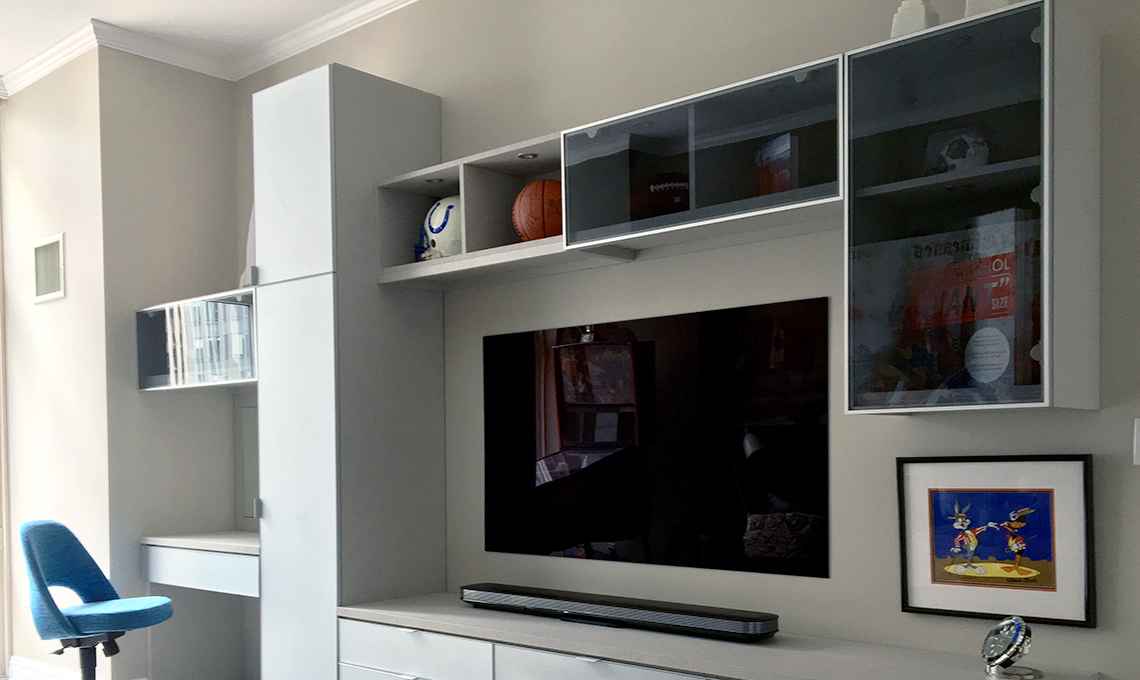

AF016 Aluminum Frame Door Profile in Brushed Stainless with White Matte Backpainted Glass Inserts. Image Courtesy of Garcia Cabinetmakers
AF016 Aluminum Frame Door Profile in Brushed Stainless with White Matte Backpainted Glass Inserts. Image Courtesy of Garcia Cabinetmakers
Inserts
-
Standard Glass & Mirror
-
Premium Glass & Mirror
-
Backpainted Glass
-
3Form Architectural Resin
-
dECOLuxe Solid Acrylic
-
Recycled Leather
Hardware Options
- Maximum width & height = 96” (2438mm)
- Minimum width & height = 5.5” (140mm)
- Maximum square footage = 16 sf
- NOT recommended for drawer fronts
- NOT recommended for face frame cabinets
- Contact Element Designs for dimensions exceeding recommended maximums
- Order Your AF016 Sample Door HERE
- Visit our Online Sample Store for more AF016 Samples
- 4mm (.156”) with seamed edge
- Handle hole locations must be specified at time of order if insert is tempered glass
