AF017

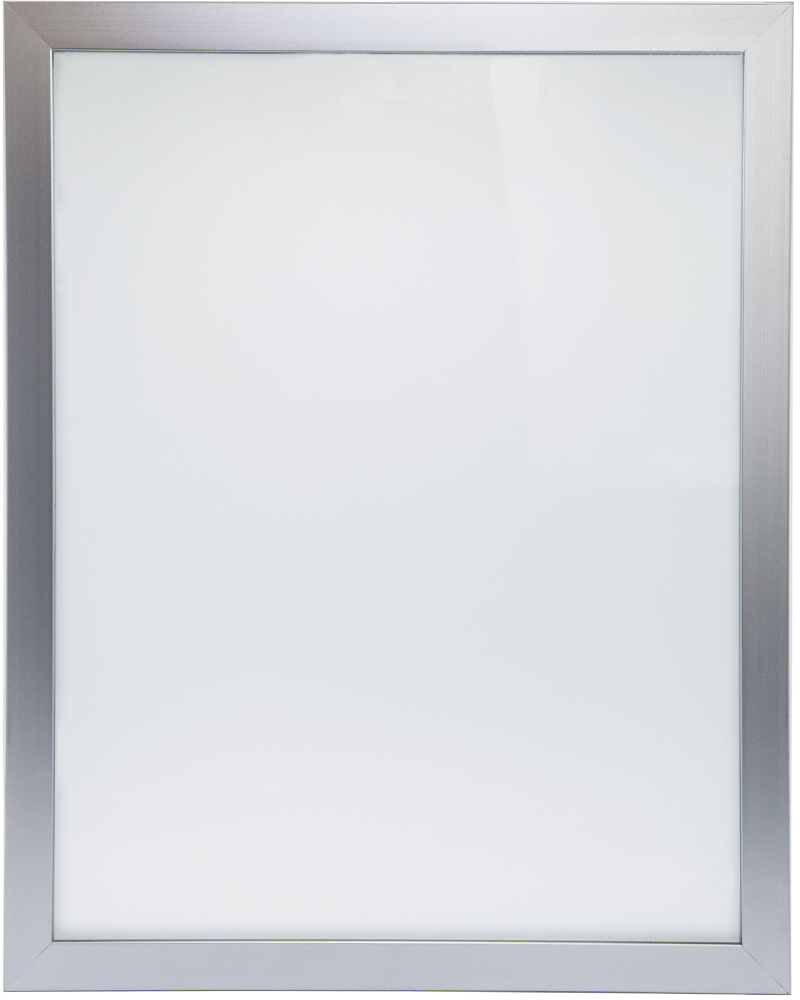

Aluminum Frame Cabinet Doors

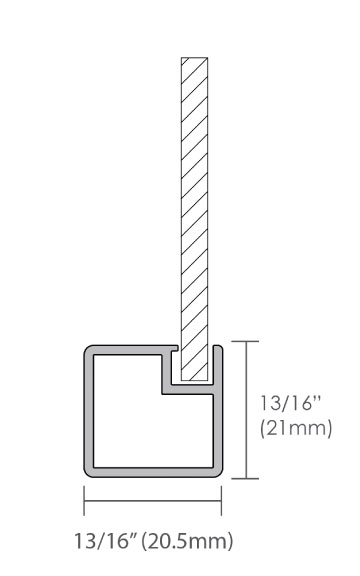

Profile Finish

  • natural aluminum (N)
  • bronze matte (BZM)
  • chalk (CK)
  • onyx (black matte) (X)
  • modern brass (MB)
  • luxe bronze (LB)
  • copper (CP)
  • arctic silver (AS)
  • gold (GLD)
  • graphite (GR)
  • black (B)
  • brushed stainless (S)


  • Maximum width & height = 96” (2438mm)
  • Minimum width & height = 5.5” (140mm)
  • Maximum square footage = 16 sf
  • NOT recommended for drawer fronts
  • NOT recommended for face frame cabinets
  • Contact Element Designs for dimensions exceeding recommended maximums
  • 4mm (.156")
  • Handle hole can be drilled through frame
