Push To Open Mechanisms

Blum TIP-ON

Blum TIP-ON for doors


The TIP-ON unit can either be bored into the cabinet panel or attached to the cabinet interior using adapter plates.

Grey finish.

Salice PUSH Release

The Push system consists of a series of self-opening hinges, release devices that can be fitted to the top, base or side panel of the cabinet, and retaining catches to be fitted to the back of the door.

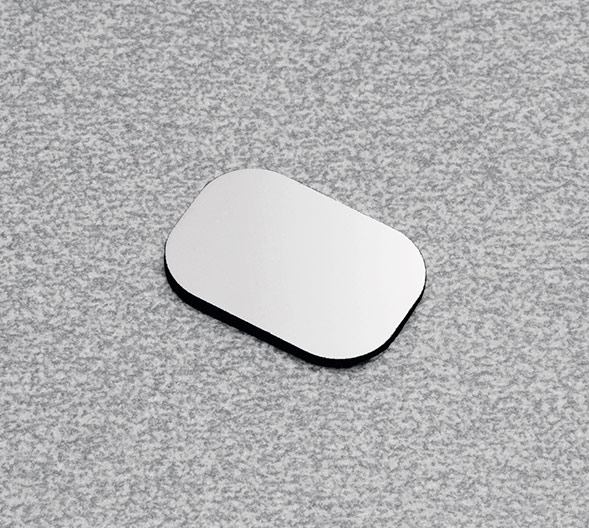

DP38XX91 - Retaining catch with adhesive. 20x14 mm.

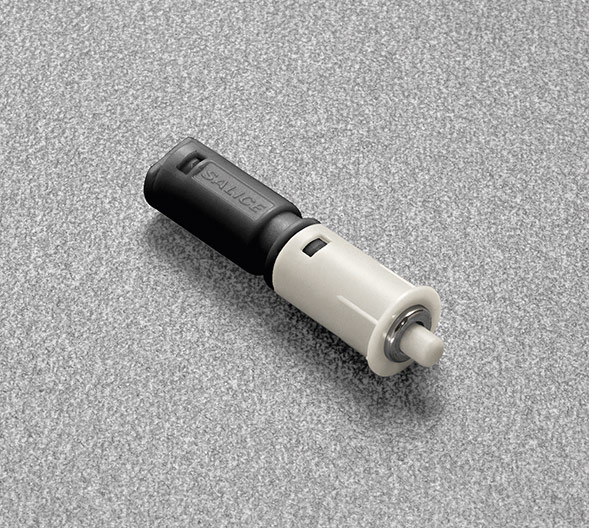

DPMSNB - Release device. ø 10 mm, 40 mm length. Beige

DPASNB - Release device to be used to increase the magnetic holding strength. It must always be used together with the DPMSNB. The suggested position of the DPM is the point of pressure on the door. The DPA can be positioned at any point along the opening edge of the door. ø 10 mm, 40 mm length. Beige
