°eCubed Shelving Systems
Profile Finish
-
Natural Aluminum [N] -
Brushed Stainless [S] -
Black [B] -
Onyx - Black Matte [X] -
Bronze Matte [BZM] -
Graphite [GR] -
Luxe Bronze [LB] -
Copper [CP] -
Modern Brass [MB] -
Gold [GLD] -
Arctic Silver [AS] -
Chalk - White Matte [CK]

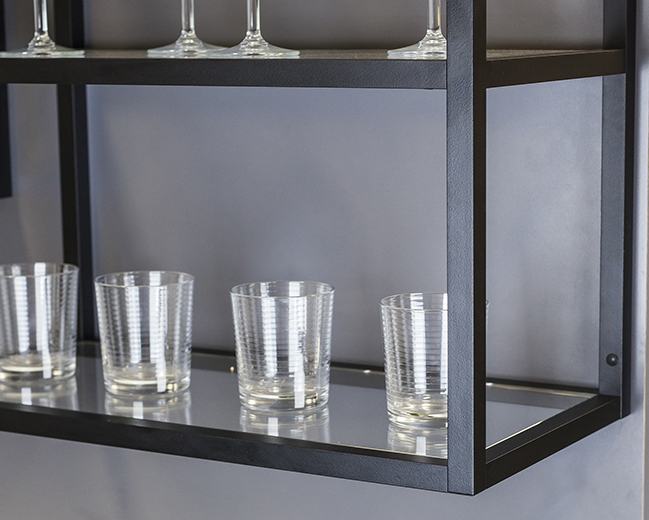

°eCubed Shelving System in onyx finish with white matte backpainted glass inserts.

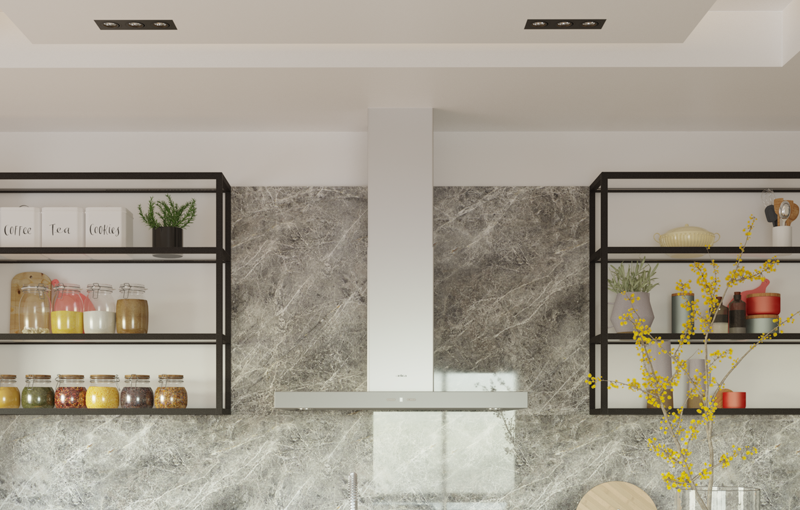

Contemporary kitchen featuring °eCubed Shelving as an open upper cabinetry design element. Image courtesy of Wood-Mode Fine Custom Cabinetry. (Wood shelves not provided by Element Designs)

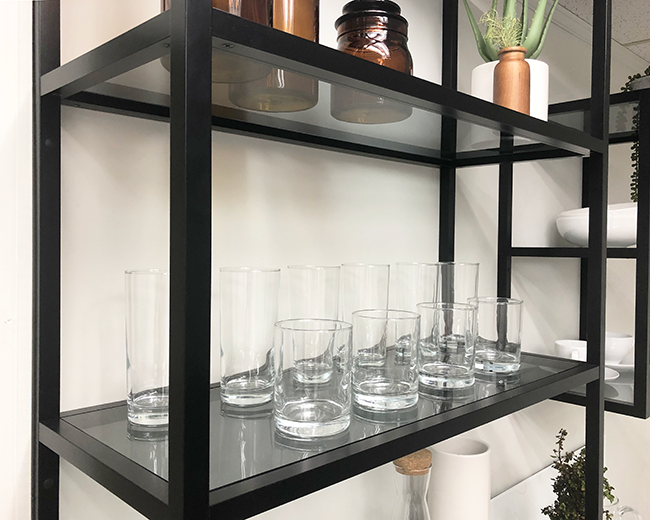

Kitchen open shelving storage using °eCubed shelving system onyx finish with grey clear glass.

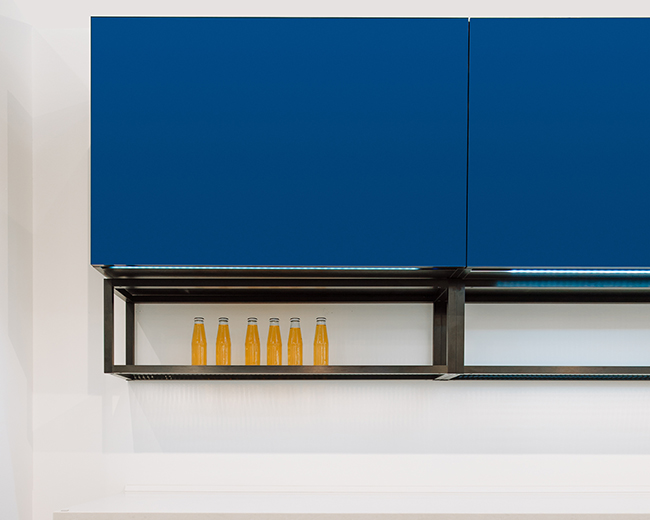

°eCubed Shelving creates a modern open storage solution beneath upper cabinetry.

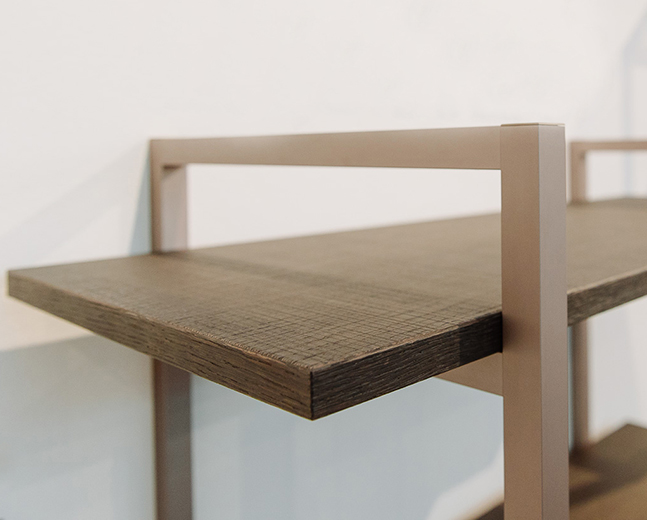

°eCubed system used in alternative shelf mounting method with shelves placed on horizontal supports. Custom metallic finish. (Wood shelves not provided by Element Designs)

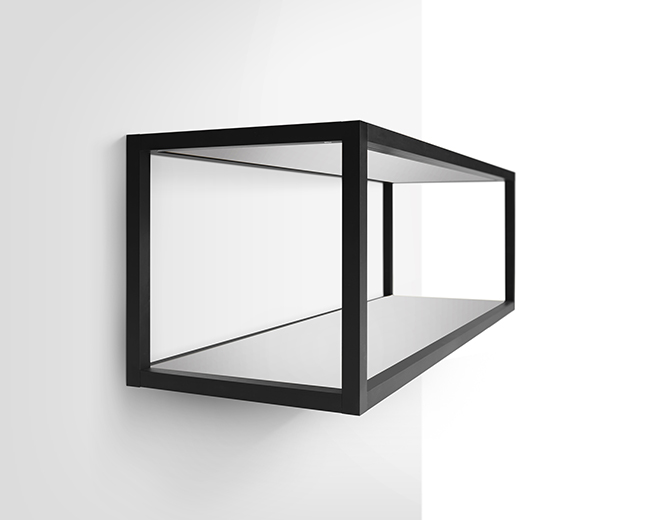

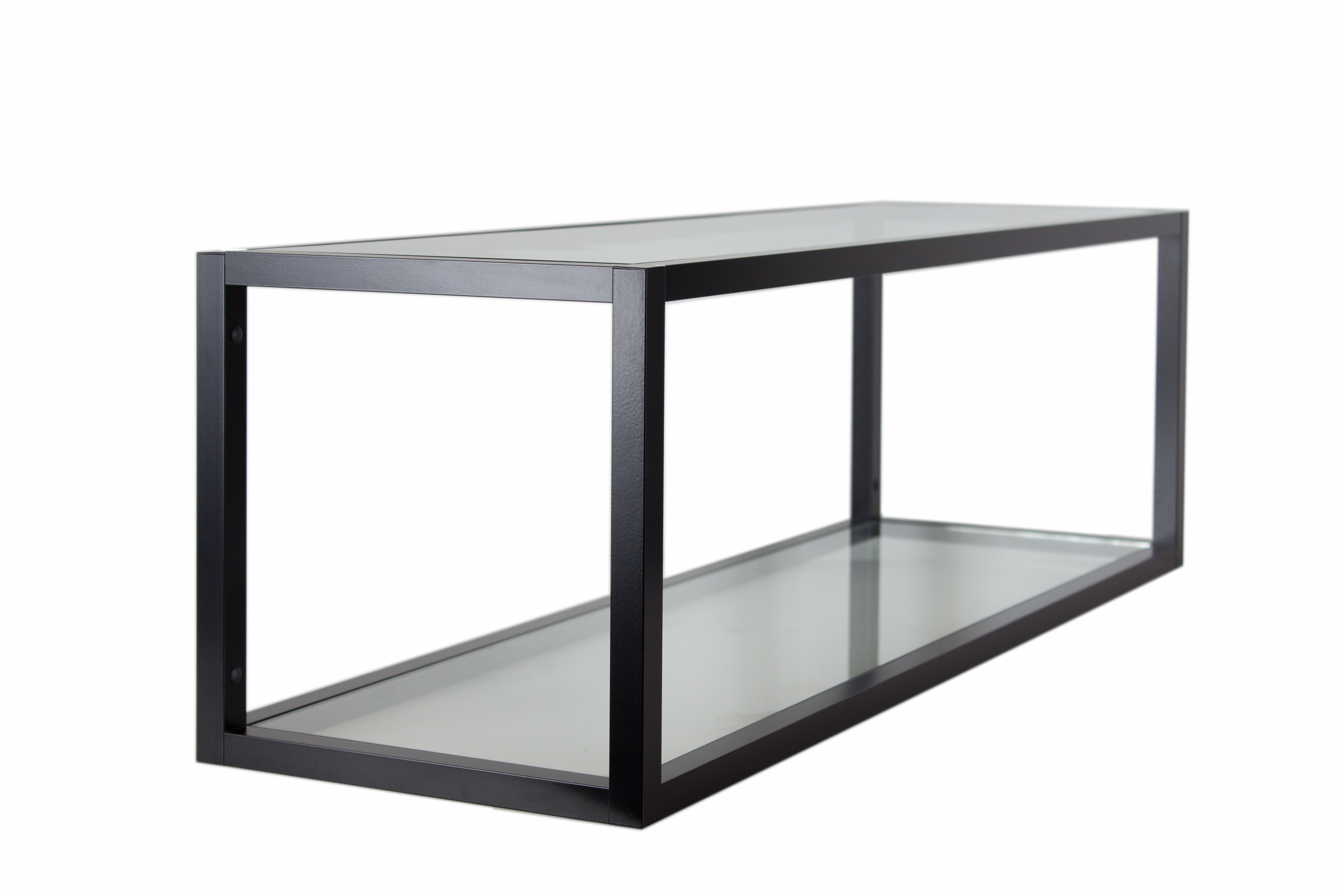

°eCubed shelving unit in onyx finish featuring low iron clear glass shelves.
Wall mounted base cabinet shelving application featuring our stainless steel finish and reflective bronze glass shelves.
eCubed Shelving, Bronze Matte Finish, Clear Glass

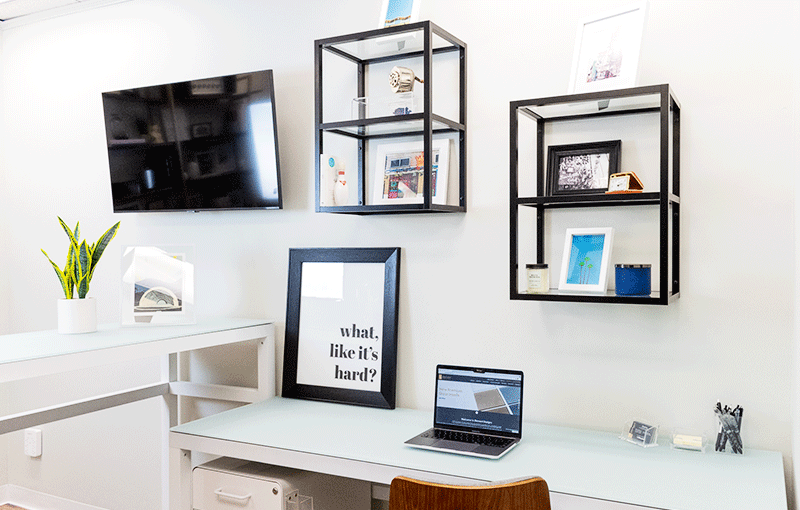

Wall mounted °eCubed Shelving Systems in onyx with grey clear glass inserts
-
Satin Glass
-
Clear Glass
-
Grey Clear
-
Low-Iron Satin Glass
-
Low-Iron Clear Glass
-
Bronze Clear Glass
Standard Glass Shelf Options
-
white gloss
-
white matte
-
black gloss
-
black matte
-
slate gloss
-
slate matte
-
sand gloss
-
sand matte
-
navy gloss
-
navy matte
-
mist gloss
-
mist matte
-
cream gloss
-
cream matte
-
amarillo gloss
-
amarillo matte
-
sienna gloss
-
sienna matte
-
oasis gloss
-
oasis matte
Backpainted Glass Shelf Options

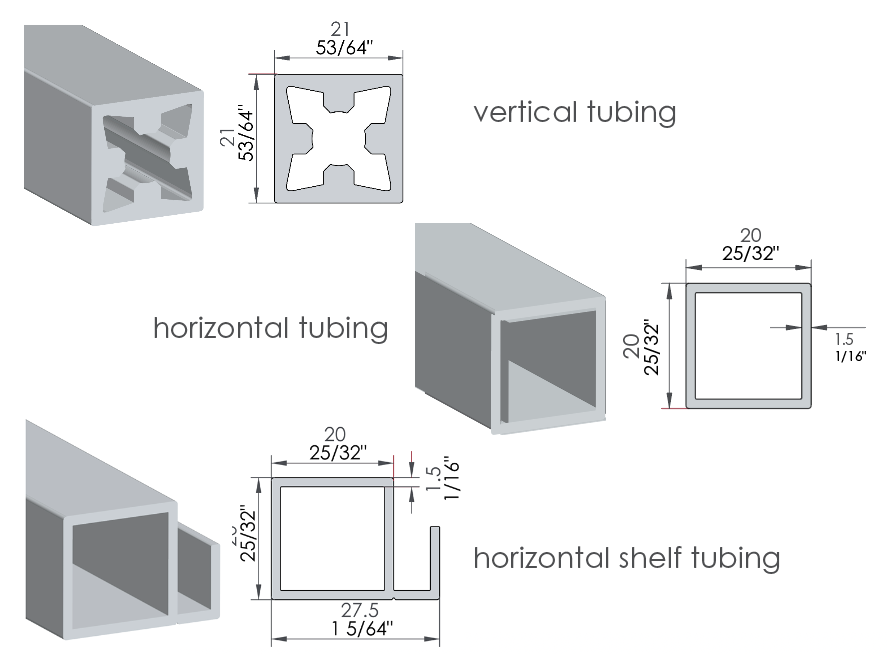

- Shelves can be inset to rest on the interior shelf profile channel, or can be sized to lay across depth.
- Additional depth support required every 48”
- 6mm shelf inserts recommended
- Glass shelf inserts available in numerous options
- Contact Element Designs for mounting recommendation.
- Fully or partially assembled depending on configuration.
- Available with caps or leveling feet, specify when ordered
Click here to view the eCubed Shelving Technical Manual
- Standard Configuration Dimension Options:
-
Width: 12”, 18”, 24”, 30”, 36”, 42”, 48”
-
Height: 12”, 24”, 36”, 48”
-
Depth: 12”, 15”
-
-
All configurations shown are available in various standardwidths, heights and depths. Please refer to the technical manualfor details on all standard configurations and part numbers
-
Custom configurations are also available. Please contact
Element Designs with a drawing of structure.
| DIVIDER OPTION
|
no vertical divider
|
1 vertical divider
|
2 vertical dividers
|
3 vertical dividers
|
| AVAILABLE WIDTHS
|
12”, 18”, 24”, 30”, 36”
|
24”, 30”, 36”, 42”, 48”
|
36”, 42”, 48”
|
48”
|
*divider location will always be centered or evenly spaced along width
12” standard height has 1 tier
24” standard height has 2 tiers
36” standard height has 3 tiers
48” standard height has 4 tiers
