Glass & Mirror
- All glass inserts are 5/32” (4mm) thick
- Pattern/etched side faces in, unless backpainted or requested otherwise.
- Pattern options include Listral D, Regular Reeded, & Narrow Reeded
- Tempered safety glass without tempered logo unless specifed. Tempering done in-house
- Mirror is NOT tempered but it does include safety backer
- Handle holes can be drilled, but must be specified at time of order, prior to being tempered
- Listral D maximum size = 82" (2082.8mm) x 48" (1219.2mm)
- Narrow Reeded maximum height (vertical line pattern) = 82” (2082.8mm)
- Regular Reeded maximum height (vertical line pattern) = 96” (2438.4mm)
- All Reeded maximum height (horizontal line pattern) = 60” (1524mm)
- Narrow Reeded pattern is 1/8” (3.2mm) spacing (NEW!)
- Regular Reeded pattern is 1/2” (12.7mm) spacing
- Reeded is available for aluminum frame door insert applications or as inserts only.
- Reeded glass can be backpainted in any custom color or any of our standard colors. When backpainting, pattern side must face out.
-
Satin Glass
-
Clear Glass
-
Listral D Glass
-

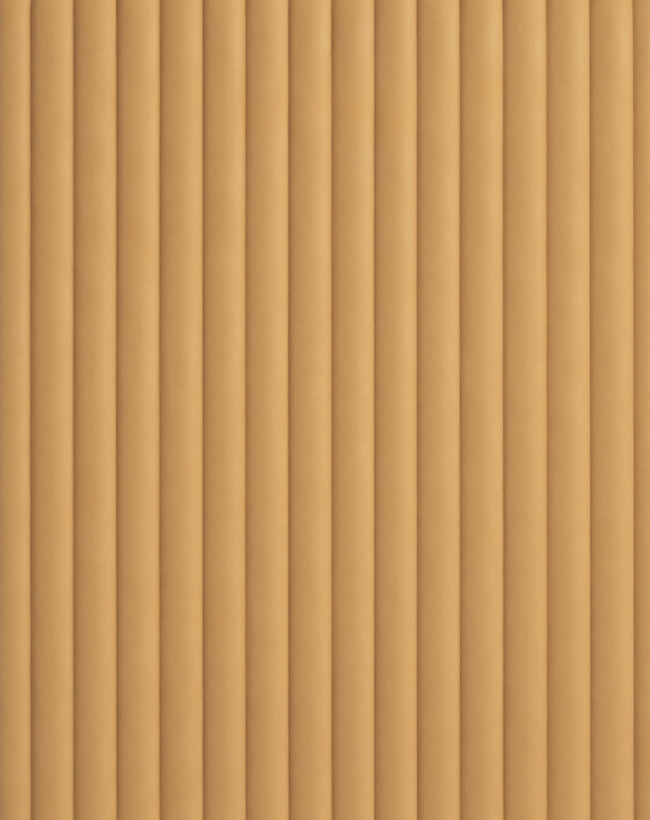

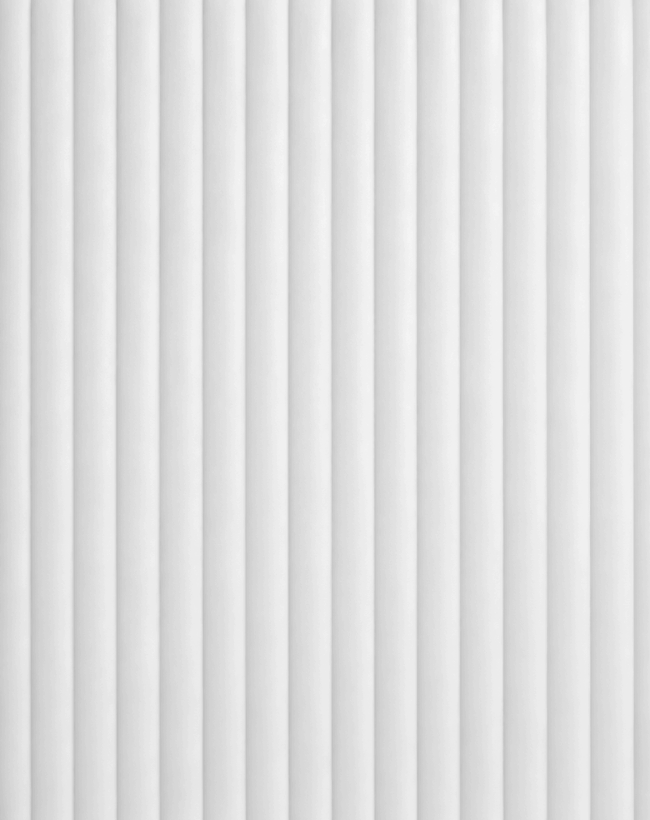

Regular Reeded
-
Grey Clear
-
Low-Iron Satin Glass
-
Low-Iron Clear Glass
-
Mirror
-
Bronze Clear Glass
-
Bronze Satin
-
Grey Satin
-
Bronze Satin Mirror (non-reflective)
-
Grey Satin Mirror (non-reflective)
-
low-iron mirror
-
Low-Iron Satin Mirror (non-reflective)
-

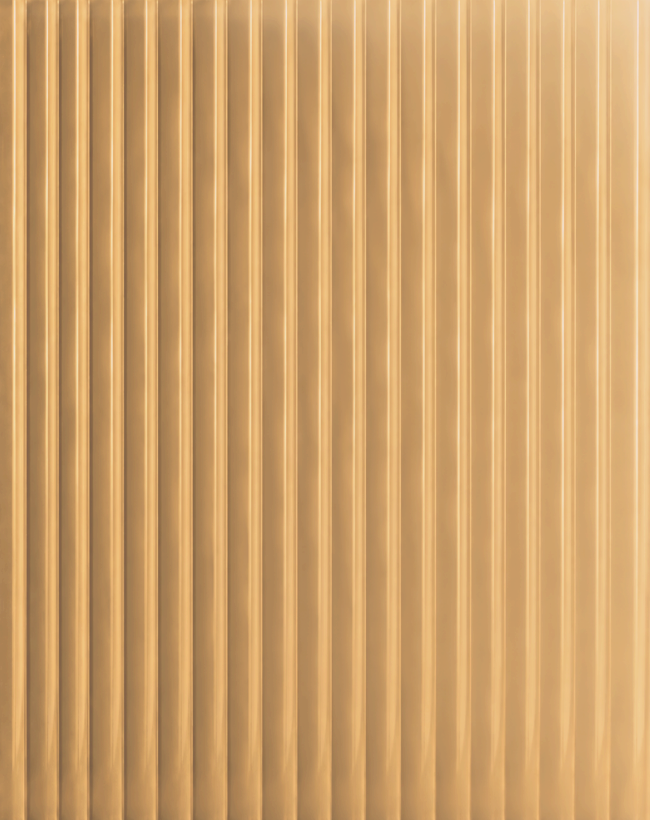

Narrow Reeded Glass
